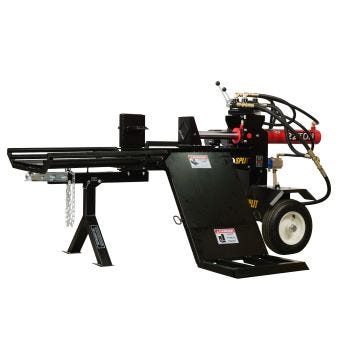

RuggedSplit 322-24-RE Log Splitter: 22-Ton, Raven 212cc, Log Lift, 24" Stroke
This RuggedSplit 300 Series horizontal log splitter packs the power and comfort you need to tackle the toughest backyard projects. The features on this RS 322-24-RE model include:
- 22-ton ram force
- Raven 212cc engine, OHV, 4-stroke (engine shown in images may vary)
- Electric start
- 24" cylinder stroke
- 2-way blade and a slip-on 4-way blade
- Log lift and log catcher tray
- 8" wheels and steel fenders
- 2" trailer hitch coupler and chain
All RuggedSplit log splitters come with a one-year parts warranty and access to our highly knowledgeable customer service team.
Purchase a hydraulic fluid starter pack, engine oil, or a battery with this log splitter, and we'll waive the shipping fee for these items. See Related Products below to add these items to your cart.
Meet the RS 322-24-RE
This RS 322-24-RE log splitter packs the power you need to finish off that weekend chore in record time. The horizontal, push-through design utilizes a steel push plate to drive wood against a 2-way blade welded to the end of the solid steel beam. To really ramp it up, you can use the included 4-way slip-on blade to produce four split logs in one stroke.
What good is all that power if you can't split in style? You'll have plenty of neighbors gawking at the heavy-duty hydraulic log lift that easily raises those hefty rounds up to the waist-high beam, while a bi-pod support leg provides stability and folds up and out of the way when towing. The extra-wide log catcher tray at the blade-end of the beam catches all the split wood. To round out the amenities, valve controls are positioned for easy access
This log splitter's power platform features a 212cc Raven electric start engine and a 13 GPM, 2-stage pump.
A dual valve power-beyond system can be installed in your choice of multiple positions for truly personalized operation.
Hydrualic Log Lift
A hydraulic-powered log lift saves your back and doubles as a work table. Just load the rounds and pull the lever.
Four is always better than two! Maximize efficiency and minimize splitting time with a 4-way blade.
Fast Cycle Time
A 3.5" cylinder rod, 3/4" work ports, and 3/4" hoses help to reduce cycle times. No more wasted time between rounds!
Ergonomics & Speed
While RuggedSplit log splitters are engineered to handle the tough stuff, they are also a breeze to operate. The waist-height beam means less bending over and less back strain. The optional work table is covered with a solid steel sheet to slide partial rounds off to the side while you split. There is no need to straddle the wheel and tank to reach the dual valve power-beyond system, which mounts on a platform located up high over the main cylinder. The main cylinder valve has an auto-return detent.
The enormous 2.25" rod makes for a rapid return stroke, reducing overall cycle time. Big, free-flowing 3/4" ports on the cylinder, connected by 3/4-inch hoses to 3/4" ports on the valves, mean no bottlenecks in the hydraulic system.
You can install the dual valves in five different positions onto their platform: 45 or 90-degree angles to either side of the beam or straight down the centerline -- you decide what's best for how you want to operate the splitter.
The RuggedSplit Difference
RuggedSplit log splitters feature commercial-grade design and construction at a price the average homeowner can afford. Precision laser-cut steel; strong, solid welds throughout; and powder coating for long-lasting protection mean our wood splitters will stand the test of time. We only use steel-reinforced hoses, heavy-duty steel fittings, and steel-grade hardware to withstand the high pressures, force, and power our splitters provide. We stand behind our product 100% because we know we have engineered a firewood splitter that you can rely on, cord after cord, season after season.
- SKU: 48-563-322-RT06E-13-225-150-LLK
- Manufacturer: RuggedMade
- Style: Horizontal
- Series: RS-300
- Model: RS 322-24-RE
- Ram Force: 22-Ton
The distance the cylinder rod end travels from fully retracted to fully extended.24"
Stroke Restrictor Settings:
The distance the cylinder rod end travels from fully retracted to fully extended when the stroke restrictor plates are attached. Reducing the cylinder stroke will decrease the time it takes for the cylinder to return to the retracted position.20" length
- Cylinder Dimensions: 4" bore (ID) x 24" stroke x 2.25" rod (OD)
The average time it takes for the push plate to travel a round trip between the fully retracted and extended positions. Time can vary depending on the density of the wood being split.12 sec out/back unloaded
- Engine: Raven 212cc (6.5hp)
- Starting: Electric & pull start
- Fuel Tank Capacity: 0.95 gal
- Engine Oil Capacity: 0.53 qt
- Pump: 13 GPM (2-stage)
- Valve: Auto-return; 3/4" NPT in/out and work ports
- Hoses: High-pressure, steel re-enforced
- Hydraulic Fluid Tank Capacity: 8 gal
- Hydraulic Fluid Type: AW-32 10-Weight (ISO 32) or AW-46 20-Weight (ISO 46)
- Beam (L x W x H): 44" x 5.9" x 5.9" solid steel i-beam
- Beam Working Height: 28.43"
- Wedge Type: 2-way; 4-way (slip-on)
- Wedge Height: 9"
- Max Log Length: 24"
- Max Log Diameter: 18"
- Log Lift Capacity: 300 lbs
- Log Cradle (L x W x H): 14" x 9" x 7.5"
- Log Catcher Tray (W x L): 31" x 31.5"
Log Catcher Tray Height:
The height of the log catcher tray from level ground to the bottom front edge of the tray.24"
- Tongue Stand: Folding bi-pod brace
- Trailer Hitch Coupler: Fits 2" ball
- Tires / Wheels: 4.80-8 DOT pneumatic tires / 8" wheels
- Max Tow Speed: 40 mph
- Product Weight: 730 lbs
- Assembled (L x W x H): 90" x 50" x 45"
- Shipping Weight: 765 lbs
- Shipping Dimensions (L x W x H): 87.5" x 24" x 22"
- Warranty: 1 year parts
