Zinga Hydraulic Filter Kit: 25 Micron, 50 GPM Flow Rate

In stock
SKU
35-565-FLTR-ASSY-SF120-SE25
$42.99

Keep your log splitter's hydraulic fluid free of contaminants with this convenient filter and filter head fitting kit.

  • Fits on all RuggedSplit 700 Series log splitters

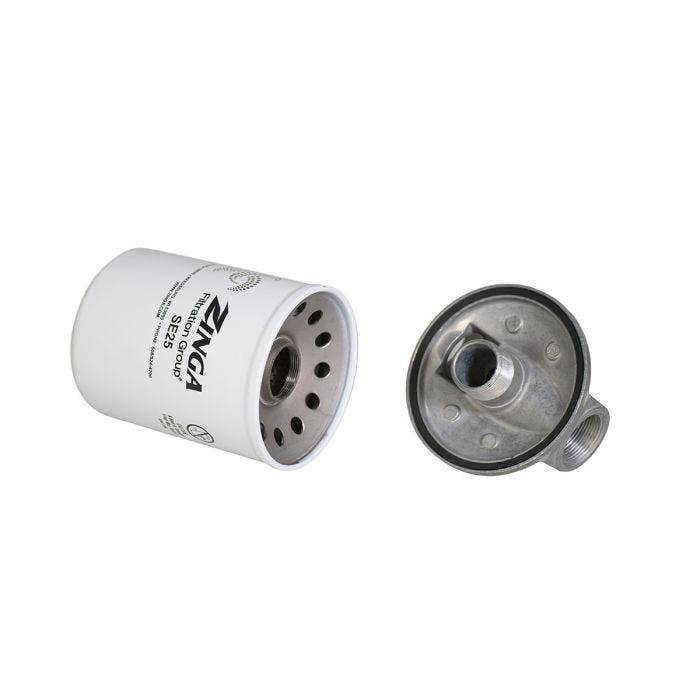

  • Includes a Zinga SE25 hydraulic fluid filter and a Zinga SF120 spin-on filter head

Note: Do not use this filter kit on the suction side between the hydraulic fluid reservoir and the pump inlet port.

Replace It With A Briggs

This hydraulic fluid filter kit is ideally suited for log splitters with a 12-gallon fluid tank and 22 to 28 GPM hydraulic pumps. It is provided all 700 Series log splitters from RuggedMade.

Features include 25 micron filtration, 50 GPM flow rate, and 1-1/4" NPT(F) inlet and outlet ports.

When installing, note the flow direction marked on the filter head. Installing it in the wrong direction will damage the filter head bypass and filter element.

This filter head is recommended for use on the return line only. Installing this kit between the pump and the hydraulic fluid reservoir may restrict flow and cause cavitation in the pump.

Technical Details

  • SKU: 35-565-FLTR-ASSY-SF120-SE25
  • Manufacturer: Zinga
  • Pressure Rating: 250 PSI
  • Particle Size: 25 Micron
  • Inlet / Outlet Ports: 1-1/4" NPT(F)
  • Flow Rates: 70 GPM (Return), 25 GPM (Suction)
  • Bypass Valve: 25 PSI
