Lovejoy Style Jaw Coupling Hub: L100 Size, 5/8" Bore
This RuggedMade L100 jaw coupling hub provides strength and support when connecting two rotating drive shafts.
- Fits onto a 5/8" shaft
- 370 inch per pound rated torque
- Made from CNC sintered steel
- No lubrication required

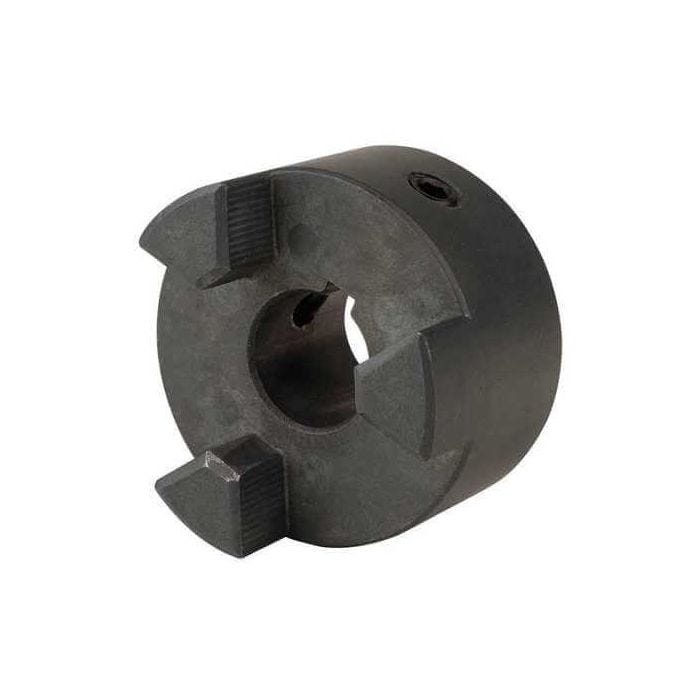

The image shown does not reflect the actual product dimensions.
NOTE: A complete coupling assembly requires two hubs and a rubber spider insert. All components are sold separately. To order additional components to create a complete L100 coupling assembly for your needs, see Related Products below.
- SKU: 94-020-0406
- Bore Diameter: 5/8"
- Length Through Bore: 1.38"
- Material: CNC sintered steel
- Outer Diameter: 2.54"
- Overall Length: 3.48"
- L Style: L100 Size
- Keyway Size (W x D): 3/16" x 3/32"
- Manufacturer: RuggedMade
- Part Number: L100585
- Product Weight: 1.85 lbs
