Lovejoy Style Jaw Coupling Hub: L095 Size, 1-1/8" Bore

Name: Lovejoy Style Jaw Coupling Hub: L095 Size, 1-1/8" Bore
SKU: 94-020-0304
Price: 13.99 USD
Availability: InStock

In stock

SKU

94-020-0304

$13.99

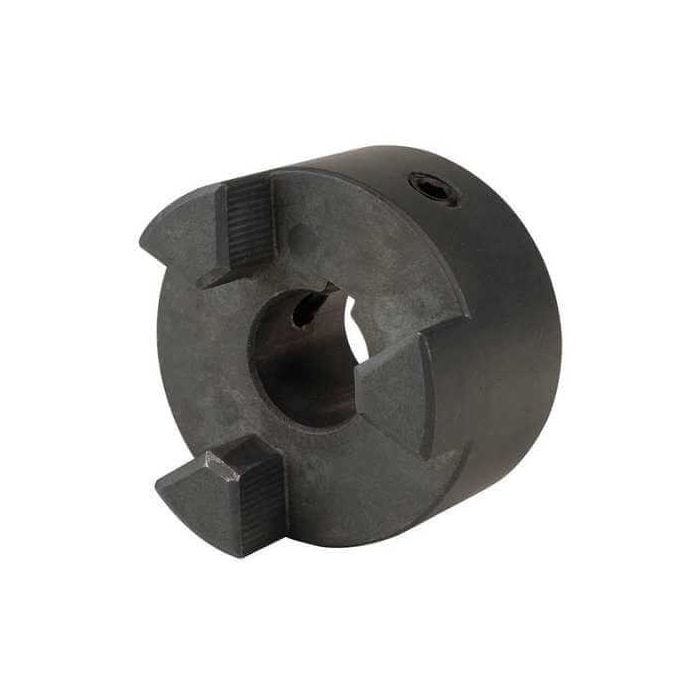

This RuggedMade L095 jaw coupling hub provides strength and support when connecting two rotating drive shafts.

Fits onto a 1-1/8" shaft
260 inch per pound torque
Made from CNC sintered steel
No lubrication required

The image shown does not reflect the actual product dimensions.

NOTE: A complete coupling assembly requires two hubs and a rubber spider insert. All components are sold separately. To order additional components to create a complete L095 coupling assembly for your needs, see Related Products below.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Coupling Sets You Can Rely On

Designed for connecting two rotating shafts, couplings are suitable for use in a wide range of applications, including power transmission to industrial equipment such as pumps, log splitters, gearboxes, compressors, blowers, mixers, and conveyors. These are the same couplings we use to direct-mount the engine shaft to the pump shaft on our RuggedSplit log splitters.

When ordering a complete set, use the chart below to match the shaft diameter to the coupling bore size.

To complete the coupling set, an oil-resistant synthetic rubber spider is inserted between the two coupling halves to provide an equalized cushioned drive. If provided, a keyway slot on the coupling helps to align the coupling to the shaft. Keys are not included. When mounting, do not pound on the coupling.

L095 SIZE COUPLING DETAILS

Jaw Size	Bore Size (ID)	Keyway (W x D)	Rated Torque (Inch-Pound))	Rated HP @ Varying RPM					Overall Length (Two Hubs)	Outer Diameter (OD)
Jaw Size	Bore Size (ID)	Keyway (W x D)	Rated Torque (Inch-Pound))	100	300	1200	1800	3600	Overall Length (Two Hubs)	Outer Diameter (OD)
L095	7/16"	1/8" x 1/16"	260	0.42	1.26	5.04	7.56	15.10	2.51"	2.11"
	1/2"	1/8" x 1/16"
	9/16"	1/8" x 1/16"
	5/8"	3/16" x 3/32"
	3/4"	3/16" x 3/32"
	7/8"	3/16" x 3/32"
	1"	1/4" x 1/8"
	1-1/8"	1/4" x 1/8"

Technical Details

Specifications

SKU: 94-020-0304
Bore Diameter: 1-1/8"
Length Through Bore: 1"
Material: CNC sintered steel
Outer Diameter: 2.11"
Overall Length: 2.51"

L Style: L095 Size
Keyway Size (W x D): 1/4" x 1/8"
Manufacturer: RuggedMade
Part Number: L0951185
Product Weight: 0.74 lbs

Any comments on these specs?

Diagrams & Drawings

L095 Size, 1-1/8" Bore Lovejoy Style Jaw Coupling Hub Drawing
