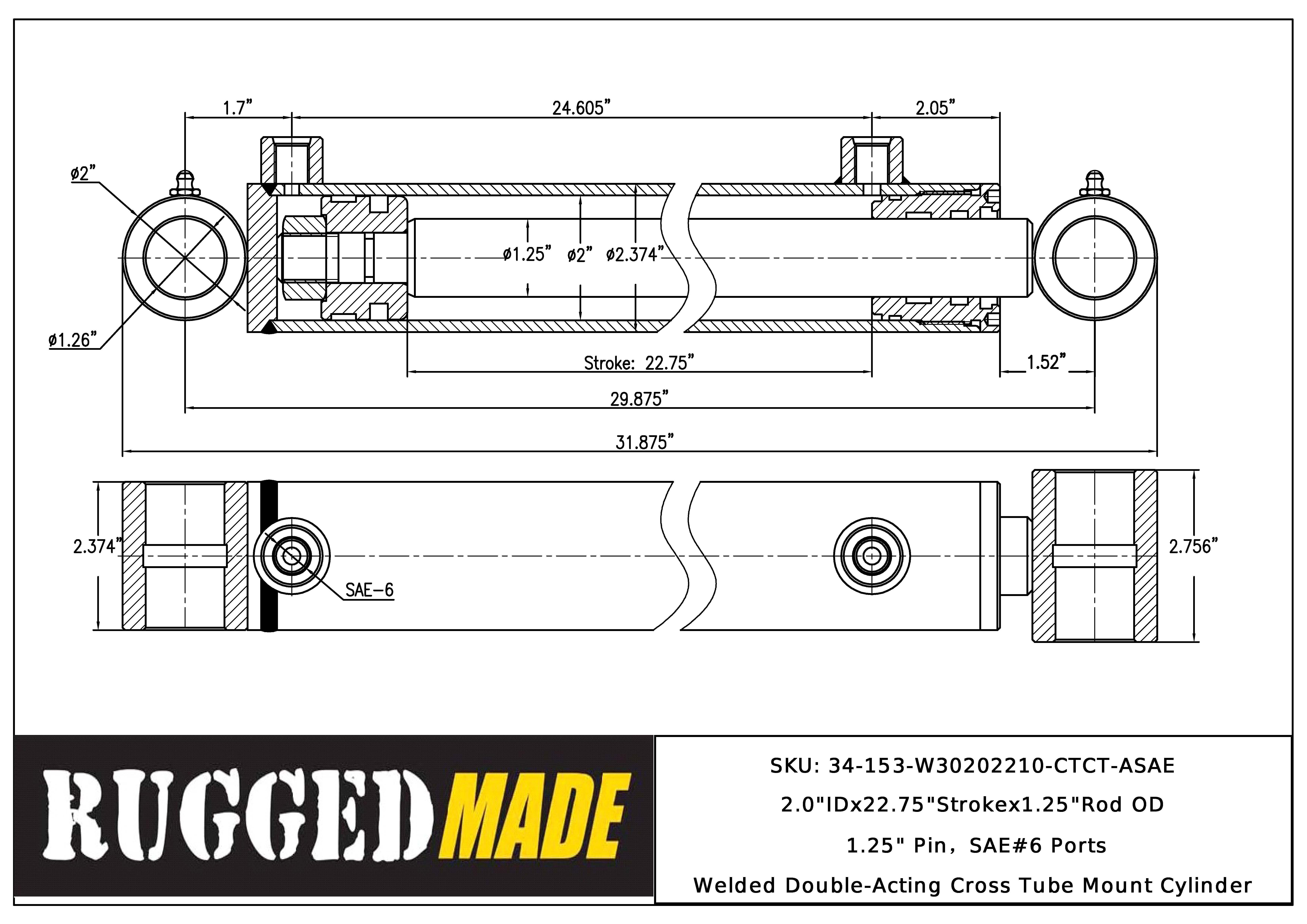

Cylinder: 2" Bore, 22.75" Stroke, 1.25" Rod
This RuggedMade double-acting hydraulic welded cylinder has a 2" bore, a 22.75" stroke, and a 1.25" diameter rod. Cross tube mounts at both ends support a wide variety of applications.
- SAE 6 (-06) ORB (F) working ports
- Cross tube mounts with spring clips (included)
- 3,000 PSI maximum working pressure
- Gloss black paint is durable and resists fading
Dependable Multi-Purpose Welded Cylinders
RuggedMade welded cylinders are manufactured with durable materials, including a ground and polished chromed rod, cast iron piston, cast cross tube mounts, and polyurethane seals. They are performance tested for smooth function and are pressure tested to 1.5 times normal working pressure to ensure safe operation.
This series of double-acting cylinders are ideal for a wide range of applications, such as compact construction equipment, forestry and agricultural implements, transportation equipment, and waste processing.
These welded cylinders are fully serviceable. Replacement seal kits are available separately. Each rod end contains a zerk grease fitting.
This model features SAE 6 (-06) ORB (F) work ports, which are easy to connect using readily available fittings.
- SKU: 34-153-W30202210-CTCT-ASAE
- Manufacturer: RuggedMade
- Part Number: W30202210-CTCT-ASAE
- Cylinder Type: Welded
A double-acting cylinder uses hydraulic pressure to both extend and retract the rod. A single-acting cylinder uses hydraulic pressure to extend the rod and relies on some other force to retract the rod.Double-Acting
- Bore (ID): 2"
The distance the cylinder rod end travels from fully retracted to fully extended.22.75"
- Rod (OD): 1.25"
The type of connection used to secure the base of the cylinder to the mounting platform.Cross Tube
- Mounting Pin (OD): 1.25"
- Rod End Type: Cross Tube
- Rod End Pin (OD): 1.25"
- Work Ports: SAE 6 (-06) ORB(F)
- Max Working Pressure: 3,000 PSI
The length between the center of the rod end hole and the center of the base end hole when the rod is fully retracted.29.875" (pin to pin, center on center)
The length between the center of the rod end hole and the center of the base end hole when the rod is fully extended.52.625" (pin to pin, center on center)
The overall length of the cylinder when the rod is fully retracted, as measured from the outside edge of the rod end to the outside edge of the base end.31.875" (retracted, edge to edge)
- Product Weight: 25.20 lbs
