RuggedSplit 537-24-HP Tip Up Log Splitter: 37-Ton, Honda 270cc, 24" Stroke
This RuggedSplit 500 Series Tip Up Log Splitter is a versatile and powerful machine designed to perform both horizontal and vertical log-splitting duties. The features on this RS 537-24-HP model include:
- 37-ton ram force
- Honda 270cc engine, OHV, 4-stroke (engine shown in images may vary)
- 24" cylinder stroke
- 4-way blade with removable wings
- Heavy-duty log knock-off and log cradle
- 8" wheels and steel fenders
- 2" trailer hitch coupler and chain
All RuggedSplit log splitters come with a one-year parts warranty and access to our highly knowledgeable customer service team.
Purchase a hydraulic fluid starter pack or engine oil with this log splitter and we'll waive the shipping fee for these items. See Related Products below for these items.
Meet the RS 537-24-HP

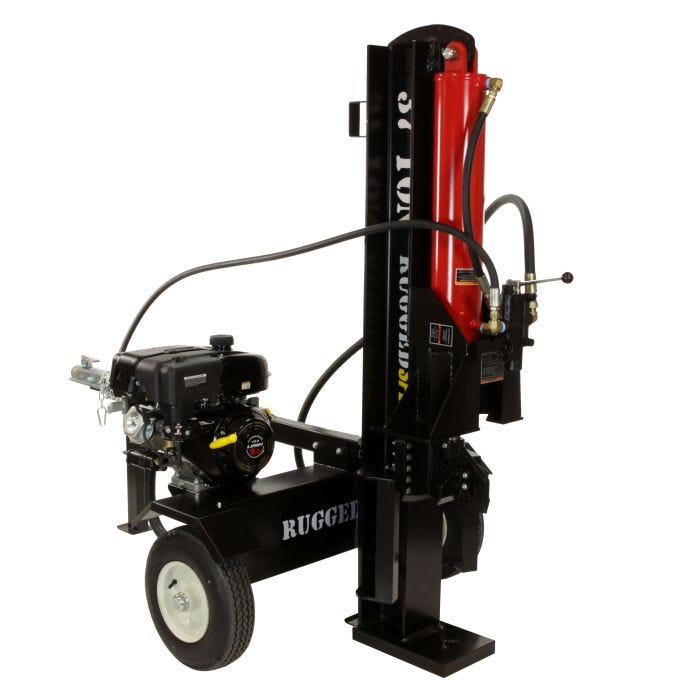

This RS 537-24-HP log splitter is a versatile machine designed to split wood in either a horizontal or vertical position. In the horizontal position, you can quickly split smaller logs that you can easily lift up onto the platform. When handling larger logs, you can tilt the beam into the vertical position and then roll the log under the blade for splitting.
A 4-way solid steel blade is attached to the end of the welded cylinder's 2" rod. When splitting wood, the cylinder drives the blade against the round into the footplate. The footplate is welded to the end of the solid steel beam. When splitting unseasoned wood or wood with large knots, you can remove the 4-way wings and split with the main 2-way blade.
Folding support legs provide stability when operating the unit. When you are ready to move the log splitter, simply unlock the legs and fold them away.
The splitter is powered by a commercial-grade Honda 270cc GX Series OHV pull-start engine. The heart of the hydraulic system is a heavy-duty 16 GPM, 2-stage pump.
Take a load off! No need to lift larger rounds up onto the beam when you can easily switch into vertical mode.
A log knock-off strips split wood off the blade when the rod retracts. The extension protects the engine and fuel tank.
Four is always better than two! Maximize efficiency and minimize splitting time with a 4-way blade with removable wings.
Fast Cycle Time
A 2" cylinder rod, 3/4" work ports, and 3/4" hoses help to reduce cycle times. No more wasted time between rounds!
Ergonomics & Speed
While RuggedSplit log splitters are engineered to handle the tough stuff, they are also a breeze to operate. The waist-height beam means less bending over and less back strain. The optional work table is covered with a solid sheet of steel to slide partial rounds off to the side while you split. There is no need to straddle the wheel and tank to reach the single-spool valve with auto-return detent, which is located up high on top of the cylinder and protected by a sturdy solid steel log knock-off device.
The huge 2" rod makes for a rapid return stroke, reducing overall cycle time. Big, free-flowing 3/4" ports on the cylinder connected by 3/4" hoses to 3/4" ports on the valves mean there are no bottlenecks in the hydraulic system.
The RuggedSplit Difference
RuggedSplit log splitters feature commercial-grade design and construction at a price the average homeowner can afford. Precision laser-cut steel; strong, solid welds throughout; and powder coating for long-lasting protection all mean our wood splitters will stand the test of time. We only use steel-reinforced hoses, heavy-duty steel fittings, and steel-grade hardware to withstand the high pressures, force, and power our splitters provide. We stand behind our product 100% because we know we have engineered a firewood splitter that you can rely on, cord after cord, season after season.
- SKU: 48-537-HD09PC-16-GRP
- Manufacturer: RuggedMade
- Style: Horizontal/Vertical
- Series: RS-500
- Model: RS 537-24-HP
- Ram Force: 37-Ton
The distance the cylinder rod end travels from fully retracted to fully extended.24"
Stroke Restrictor Settings:
The distance the cylinder rod end travels from fully retracted to fully extended when the stroke restrictor plates are attached. Reducing the cylinder stroke will decrease the time it takes for the cylinder to return to the retracted position.n/a
- Cylinder Dimensions: 5" bore (ID) x 24" stroke x 2" rod (OD)
The average time it takes for the push plate to travel a round trip between the fully retracted and extended positions. Time can vary depending on the density of the wood being split.15 sec out/back unloaded
- Engine: Honda 270cc (9hp)
- Starting: Pull start
- Fuel Tank Capacity: 1.4 gal
- Engine Oil Capacity: 1.2 qt
- Pump: 16 GPM (2-stage)
- Valve: Auto-return; 3/4" NPT in/out and work ports
- Hoses: High-pressure, steel re-enforced
- Hydraulic Fluid Tank Capacity: 8 gal
- Hydraulic Fluid Type: AW-32 10-Weight (ISO 32) or AW-46 20-Weight (ISO 46)
- Beam (L x W x H): 65" x 6.9" x 6.9" solid steel i-beam
- Beam Working Height: 30.75"
- Wedge Type: 4-way w/ removable wings
- Wedge Height: 9"
- Max Log Length: 24"
- Max Log Diameter: 24"
- Log Cradle (L x W x H): 14" x 9" x 8.5"
- Tongue Stand: Folding bi-pod brace
- Trailer Hitch Coupler: Fits 2" ball
- Tires / Wheels: 4.80-8 DOT pneumatic tires / 8" wheels
- Max Tow Speed: 40 mph
- Product Weight: 655 lbs
- Assembled (L x W x H): 87" x 50" x 45"
- Shipping Weight: 690 lbs
- Shipping Dimensions (L x W x H): 87.5" x 24" x 20.5"
- Warranty: 1 year parts
