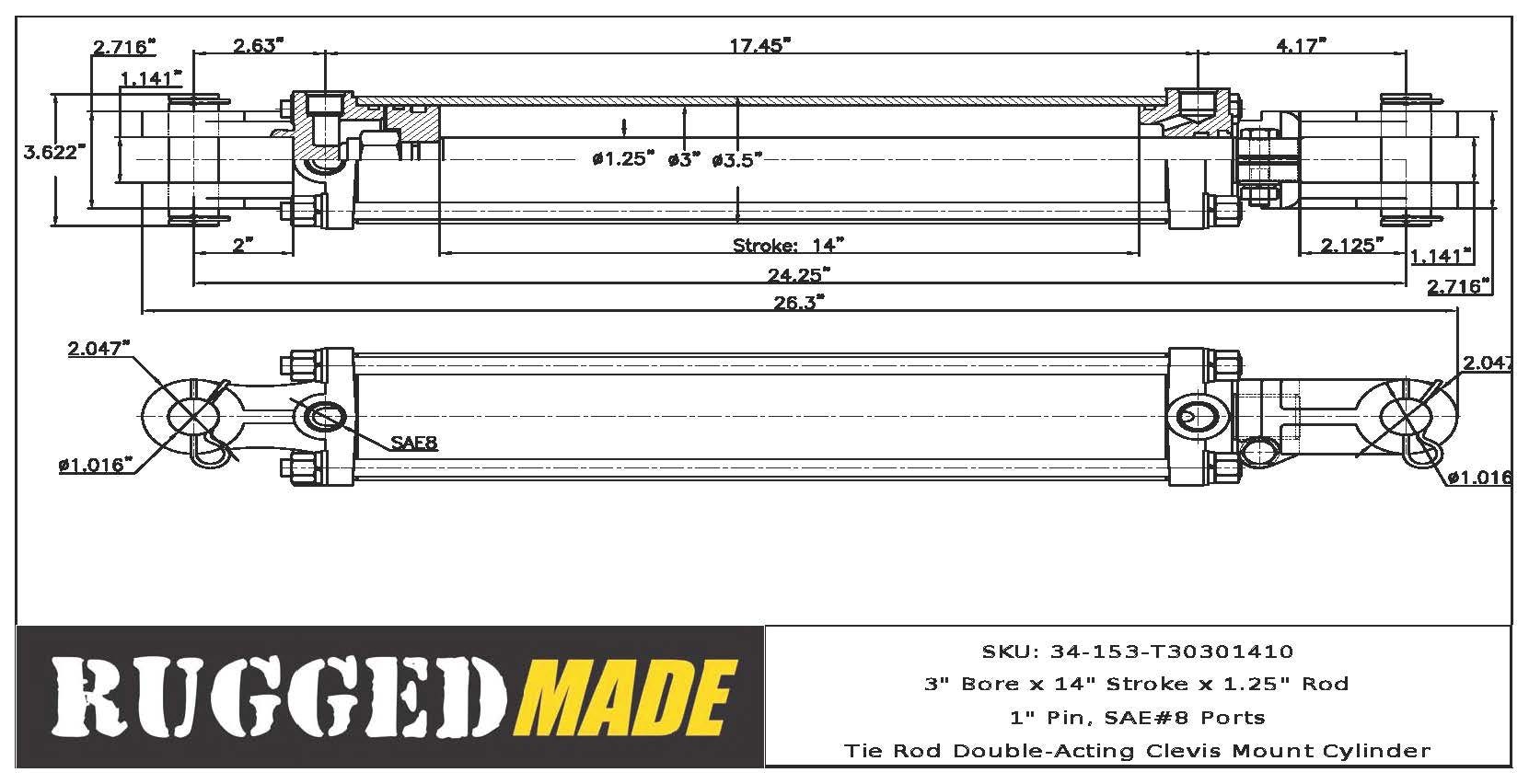

Cylinder: 3" Bore, 14" Stroke, 1.25" Rod
- Buy 2+ for $166.07 each and save 4%
- Buy 4+ for $162.61 each and save 6%
- Buy 8+ for $159.15 each and save 8%
- Buy 12+ for $155.69 each and save 10%
This RuggedMade double-acting tie rod hydraulic cylinder has a 3" bore, a 14" stroke, and a 1.25" diameter rod. Clevis mounts at both ends support a wide variety of applications.
- #8 SAE work ports
- 1" Clevis pins with spring clips (included)
- 3,000 PSI maximum working pressure
- Durable and fade-resistance black gloss paint
Hydraulic Tie Rod Cylinders Built to Last
RuggedMade tie rod hydraulic cylinders are made with durable components including tempered steel barrels, high tensile chrome plated steel rods, high tensile chrome plated steel tie rods, and long-lasting polyurethane seals. They are performance tested for smooth function and are pressure tested to 1.5 times normal working pressure to ensure safe operation.
This series of double-acting cylinders are ideal for a wide range of applications, such as compact construction equipment, forestry and agricultural implements, transportation equipment, and waste processing.
These tie rod cylinders are fully serviceable. Replacement seal kits are available separately.
This model features #8 SAE work ports. This type of connection makes a secure seal with an o-ring and is easy to connect using readily available fittings.
Technical Details
- SKU: 34-153-T30301410
- Manufacturer: RuggedMade
- Part Number: T30301410
- Cylinder Type: Tie Rod
-
Action:
A double-acting cylinder uses hydraulic pressure to both extend and retract the rod. A single-acting cylinder uses hydraulic pressure to extend the rod and relies on some other force to retract the rod.
Double-Acting - Bore (ID): 3"
-
Stroke:
The distance the cylinder rod end travels from fully retracted to fully extended.
14" - Rod (OD): 1.25"
-
Mounting Type:
The type of connection used to secure the base of the cylinder to the mounting platform.
Clevis - Mounting Pin (OD): 1"
- Rod End Type: Clevis
- Rod End Pin (OD): 1"
- Work Ports: SAE 8 (-08) ORB(F)
- Max Working Pressure: 3,000 PSI
-
Retracted Length:
The length between the center of the rod end hole and the center of the base end hole when the rod is fully retracted.
24.25" (pin to pin, center on center) -
Extended Length:
The length between the center of the rod end hole and the center of the base end hole when the rod is fully extended.
38.25" (pin to pin, center on center) -
Cylinder Length:
The overall length of the cylinder when the rod is fully retracted, as measured from the outside edge of the rod end to the outside edge of the base end.
26.3" (retracted, edge to edge) - Column Load: 21225 lbs
- Product Weight: 35.80 lbs
- Barrel Material: Quenched and tempered steel (ASIS 1020)
- Rod Material: High tensile ground and polished chrome plated steel (ASIS 1045)
- Gland Material: High tensile nodular cast iron (ASTM A536 grade 70-50-05)
- Piston Material: High tensile nodular cast iron (ASTM A536 grade 70-50-05)
- Tie Rod Material: High tensile ground and polished chrome plated steel (ASIS 1045)
