Free Shipping

Log Splitter Valve: 30 GPM, 3/4" Work Ports, Auto Return Detent

In stock
SKU
33-135-VALV-04
$112.99

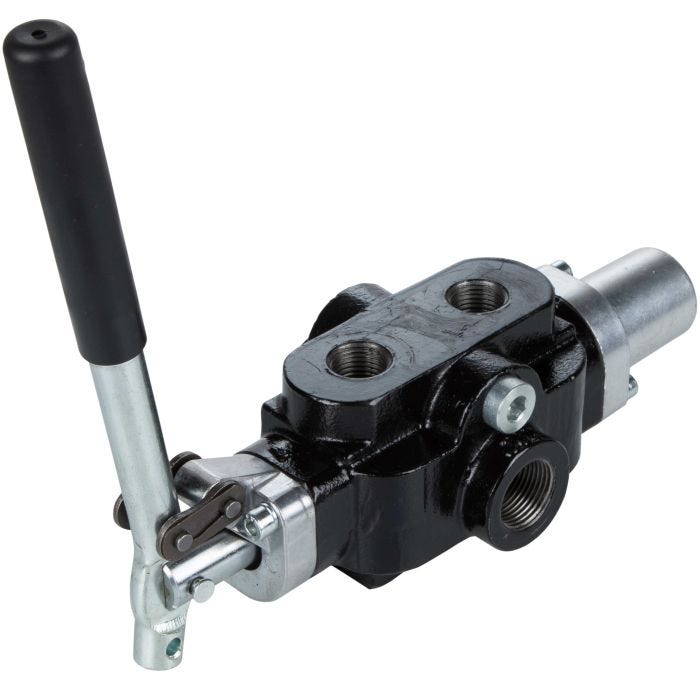

This RuggedMade hydraulic directional control valve is suitable for a wide range of applications, including log splitters.

  • 30 GPM flow rate
  • Auto return detent
  • Single spool
  • 3,500 PSI pressure rating
  • 2,250 PSI relief valve setting
  • 800 PSI detent release pressure
  • 3/4" NPT work ports
  • 3/4" NPT in/out ports

Take Control With RuggedMade Hydraulic Valves

This hydraulic valve is most commonly used on log splitters but can also be used in various applications such as trash compactors and hydraulic presses. This single spool valve is equipped with a detent valve (automatic) return feature. The valve handle can be mounted in either direction depending on the application and method of installation. In the neutral position, both work ports are blocked and the pump unloads to the hydraulic fluid tank. The maximum operating temperature is 180°F.

Technical Details

  • SKU: 33-135-VALV-04
  • Manufacturer: RuggedMade
  • Part Number: LS306NBA42
  • Max Flow Rate: 30 GPM
  • Pressure Rating: 3,500 PSI
  • Work Ports: 3/4" NPT(F)
  • Inlet / Outlet Ports: 3/4" NPT(F)
  • Auto Return Detent: 800 psi (non-adjustable)
  • Spool: 1-spool
  • Spool Type: 4-way, 3-position, tandem center
